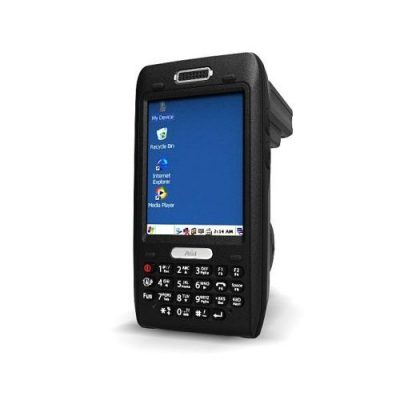

RFP870N UHF Touch Mobile Computer

Description

[vc_row][vc_column][vc_column_text]The RFP870 is a ruggedized industrial PDA that can be used for any general purpose job in the field, and it is particularly attractive for RFID applications due to the availability of customized HF and UHF RFID modules.

Technically, the RFP870 is based on standard legacy Pocket PC technology, including the ubiquitous Marvell PXA270 processor, 128MB RAM/256MB Flash, and a 3.5-inch resistive touch screen with 240 x 320 pixel QVGA resolution. The unit has an illuminated 22-key keypad that’s quite flexible via various data entry methods and six programmable function keys.

The RFP870 offers considerable application flexibility in the field. There’s Bluetooth and WiFi, and you can also add GPS and mobile broadband functionality. The device can be used as a phone. There’s a 2D imager scanner or an optional 1D laser.

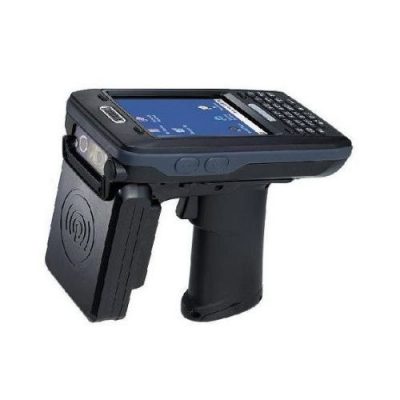

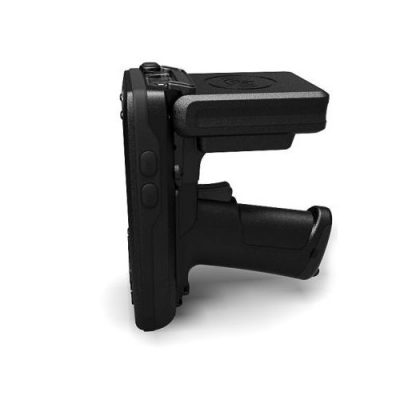

The optional pistol grip comes in handy for extended scanning tasks. The grip can also accommodate a second battery for additional battery life. And there’s the availability of RFID, either built-in for 13.56MHz applications, or via the external 923-925MHz UHF module with a read range of 12+ feet or 3.5+ meter.

The RFP870 is solid and very robust. It can be used in a very wide range of climates and is well sealed against dust and water. It can also survive drops up to 5 feet / 1.5 meter.

Overall, the RFP870 is a tough, competent tool for many data collection and decision support jobs out there in the field. In this class of devices, it is also very competitively priced and definitely warrants consideration for any job that requires extensive data collection features, including RFID, as well as easy integration into existing Microsoft IT infrastructures.

Section Description PERFORMANCE CHARACTERISTIC Processor Marvellâ„¢ PXA320 806MHz Operating System Windows CE 5.0 Memory RAM 512MB / ROM 512 (1GB*) MB Display 3.5″ QVGA with Backlight,TFT LCD, 240?320 Pixel, 262, 144 Color Stylus Touch Screen Interface Weight 270g Operating Temp -20 to 50 Storage Temp -40 to 60 Humidity 95% non-condensing Drop Spec. 1.5M.Drop to concrete Dust and Water Proof IP54 PHYSICAL CHARACTERISTIC Audio Phone Receiver, Mono Speaker, Ear Jack Port Serial Port(Rs-232C) / USB 1.1 Host & Client Port Expansion Slot 1 Micro SD Slot(SDHC support) / 1 SIM(GSM/GPRS) Slot Notification Vibrator and LED Dimension 175mm(L) x 76mm(W) x 23mm(H) BATTERY SUPPLY Main battery Lithium-ion 3.7v / 4,400mAh (Rechargeable) Backup battery Lithium-Polymer 3.7v / 100mAH (Rechargeable) Power supply Input AC100V~240V / Output DC5V 3A NETWORK CHARACTERISTIC WLAN WLAN(802.11 b/g/a compliant) Radio Standard ARIB STA-T89 GSM/GPRS, CDMA or HSDPA Bluetooth Class II, v2.0 (SPP Only) DATA CAPTURE DEVICE Barcode Engine 1D Laser (default) or 2D Imager Scanner Camera 1.3 Mega Pixel Fixed Focus with Flash (optional) UHF READER Protocol ISO/IEC 18000-6C Frequency (923MHz ~ 925MHz 4CH), output power max 0.7W Modulation PR-ASK Read Range 0 ~ 7m (According to Tag & Environment) Write Range 0 ~ 3m TAG ISO/IEC 18000-6 Type C Tag Multi Reading Anticollision Antenna(AU-003) PIFA Type (LHCP) HF 13.56MHz READER (OPTIONAL) Applied RFID Tag ISO 15693 Standard , Mifare,ISO 14443 Type A/B Read Range Based on ISO Card(0~8.5Cm), Mifare (0~3.5Cm) ACCESSORIES (OPTIONAL) PDA or UHF (Gun Handle w/ battery) Gun Handle Trigger Lithium -ion 3.7V 4,400mAH(Rechargeable) Cradle USB 1.1 Client(I/O port 24pin) & host DC power input jack
